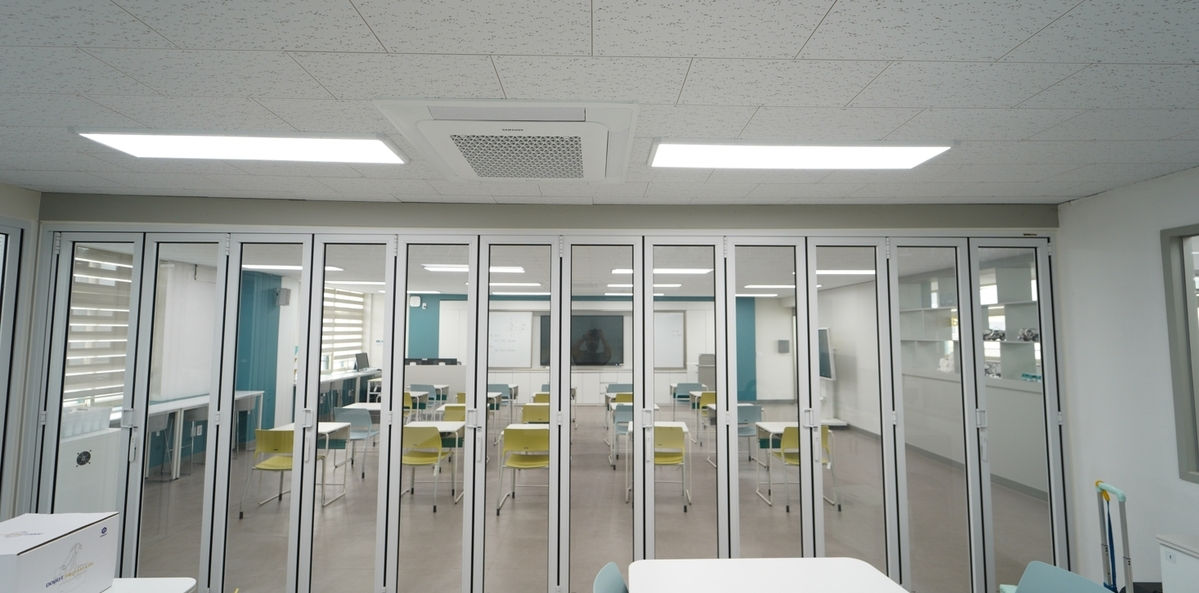

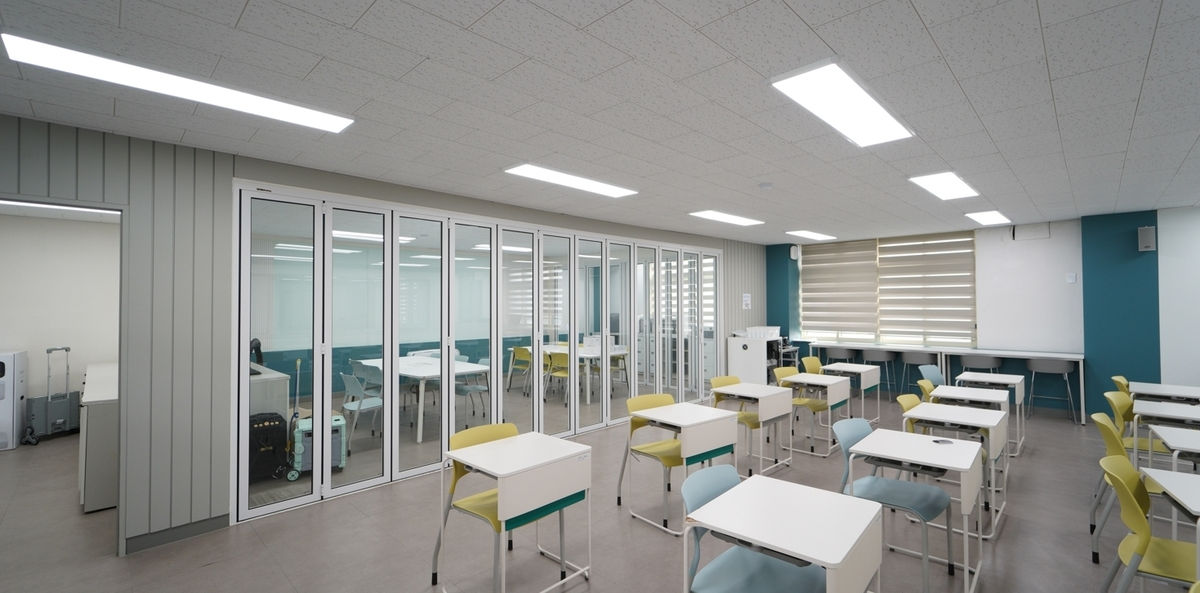

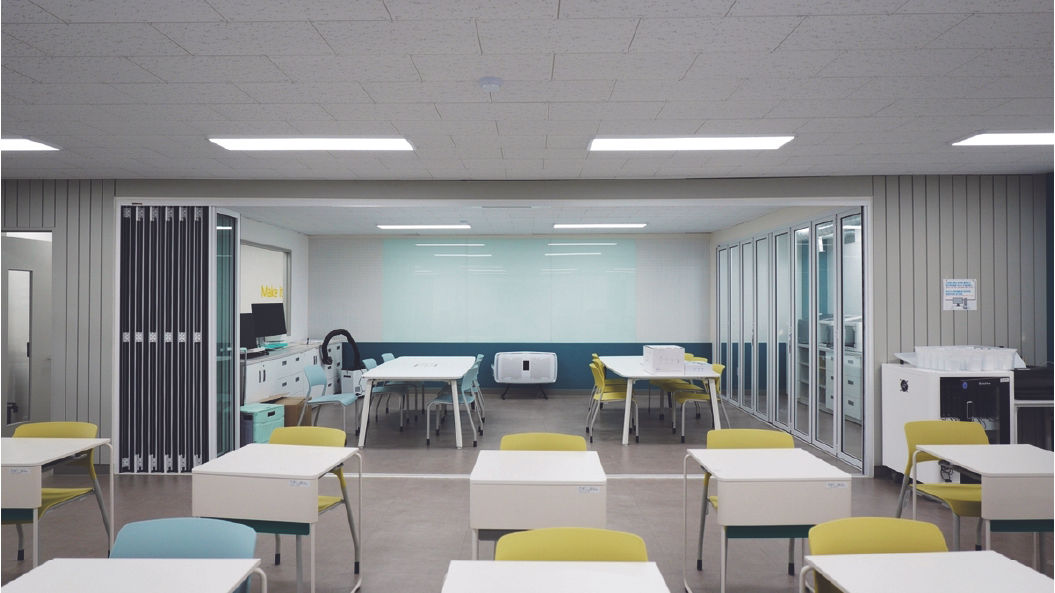

Provides seamless transition featured in standard aluminum and Thermally Broken AZON™ architectural aluminum.
Panels capable of heights up to 11'6" (3500 mm) and up to 14'9" (4500 mm) with a horizontal mullion.
Bottom Support
AJ
AJ C
Gorgeous doors! From the beginning customer support is stellar. They hold your hand through the design process, detailed CADS are generated, after purchase you receive an estimated date of arrival, and finally when they arrive, we had the awesome field rep drive all the way to our state to help and guide our contractor install them. The field rep was fantastic and even after the install was complete, months later any questions he quickly responds, offers any additional guidance - this is note worthy because most companies just take your money and disappear after the transaction is compete. Not these guys, they have continued to offer support!
Performance
Description
Material
Aluminum
Panel
Min. Panel Width: 12” (304.8 mm)
Max. Panel Width: 50” (1270 mm)
Number of Panels: Unlimited
Max Unit Height
without structural horizontal mullion
[Max. Unit Height with structural horizontal mullion]
11'6"(3500 mm)
[14'9" (4500 mm)]
Intersection of two folding doors
4 51/54" (122 mm) or 5 3/64" (128 mm)
Glass Thickness Options
0.1969” (5 mm) / 0.3150” (8 mm)
0.3937” (10 mm) / 0.4724” (12 mm)
0.6299” (16 mm) / 0.8661” (22 mm)
0.9448” (24 mm) / 1.1024” (28 mm)
1.2598” (32 mm) / 1.2992” (33 mm)
(varies by frame material)
Folding Options
Unlimited (Go to the Fold Options & Special Features Page)
Track Options
Surface Mounted Track / Minimal Recess Track
(Go to Tracks for details)
Finish Options
Froponᵀᴹ PVdf Resin Coatings
(Go to Finishes for details)
Performance
Center of glass U-Value ≤0.21
Unit U-Value ≤0.28 or 0.47
(NFRC Tested and Labeled)
Wind Design Pressure
Non Impact : ≥ +70 / -105 psf
Impact : ≥ +70 / -70psf
FL-HVHZ / Tested to TAS201/202/203
Water Penetration Resistance
≥ No leakage after 4 cycles of
5 minutes at 504 pa (10.5 psf)
Air Infiltration 0.061 or 0.065(cfm/ft2)
Air Exfiltration 0.073 or 0.090 (cfm/ft2)
Rounded Reported Value 0.1
Exceeds the requirement x3
Sound Transmission
STC up to 42
Durability
500,000 cycles
Test Passed
